Schneider Selector Switch Head ZB5AD3

Schneider ElectricSKU: ZB5AD3

Price:
£7.02

Description

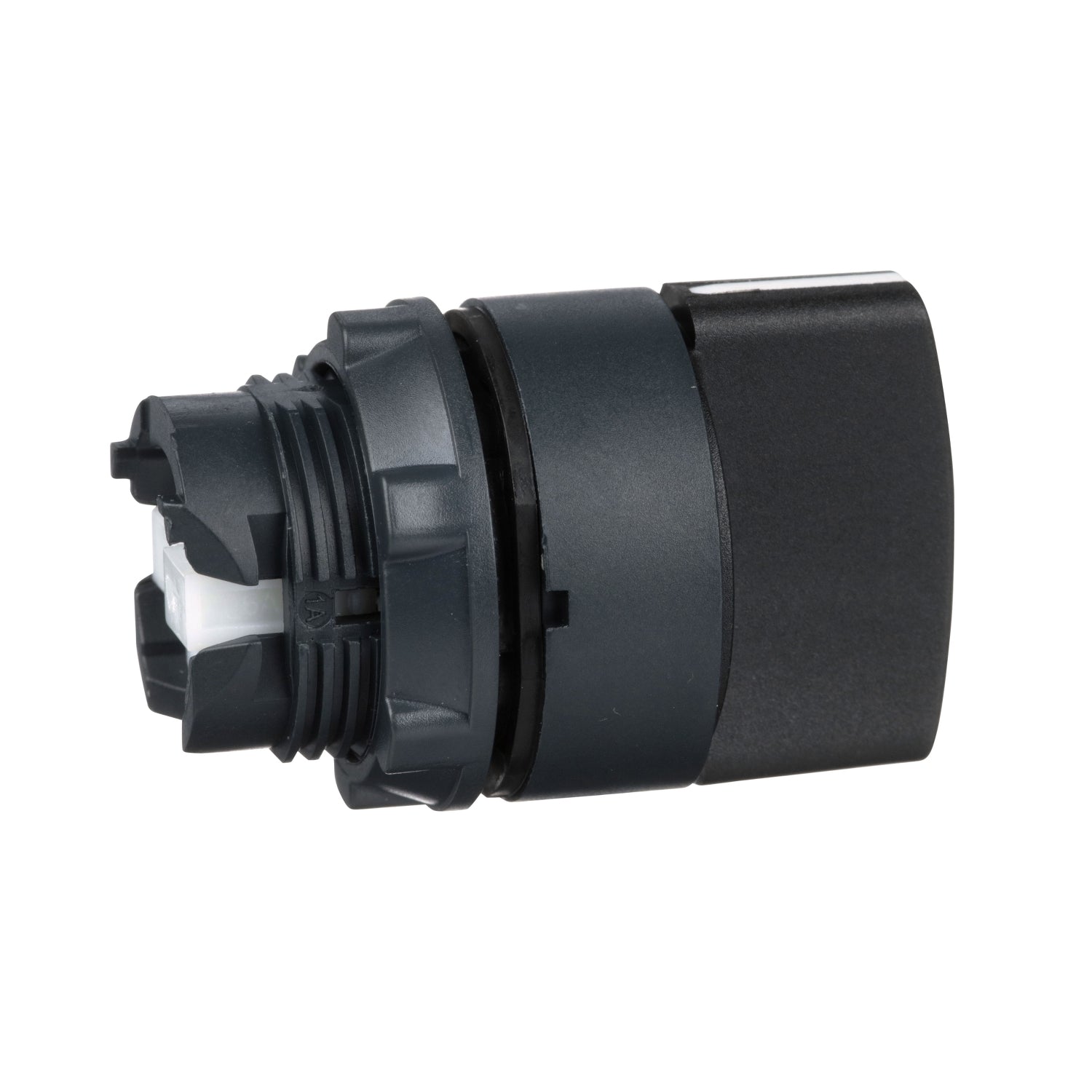

ZB5AD3 Schneider Selector Switch  Head

  • 3-Position type
  • Operator positions: ± 45°
  • Mounting diameter: 22mm
  • Plastic bezel
  • Lifetime 1,000,000 cycles
  • Overvoltage category Class II
  • Ambient temperature: -40°c to +70°C
  • Standards UL, JIS C, EN/IEC, CSA
  • Certification: DNV, GL, LROS, RINA, BV

Product Description

This black 22mm round stay-put head is for use with selector switches.

Technical Specification

  • Range of product: Harmony XB5
  • Product or component type: Head for the selector switch
  • Device short name: ZB5
  • Bezel material dark grey: plastic
  • Mounting diameter: 22 mm
  • Head type: Standard
  • Sale per indivisible quantity: 1
  • The shape of the signalling unit head: Round
  • Type of operator stay: put
  • Operator profile black standard: handle
  • Operator position information: 3 positions +/- 45°
  • CAD overall width: 29 mm
  • CAD overall height: 29 mm
  • CAD overall depth: 46 mm
  • Product weight: 0.017 kg
  • Mechanical durability: 1000000 cycles
  • Station name:
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Electrical composition code:
    • C11 for 3 contacts using single blocks in front mounting
    • SF1 for 3 contacts using single blocks in front mounting
    • C7 for 4 contacts using single blocks in front mounting
    • C8 for 4 contacts using single and double blocks in front mounting
    • SR1 for 3 contacts using single blocks in the rear mounting
    • C4 for 6 contacts using single and double blocks in front mounting
    • C5 for 5 contacts using single blocks in front mounting
    • C6 for 5 contacts using single and double blocks in front mounting
    • C3 for 6 contacts using single blocks in front mounting
  • Product certifications:
    • BV
    • CSA
    • DNV
    • GL
    • LROS (Lloyds register of shipping)
    • RINA
    • UL listed
  • Vibration resistance: 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
  • Shock resistance:
    • 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    • 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Downloads

ZB5AD3 Instructions

ZB5AD3 Datasheet
