Schneider Electric Mini Relay+LED 4CO 24V - RXM4AB2B7


Price:
£47.77

Description

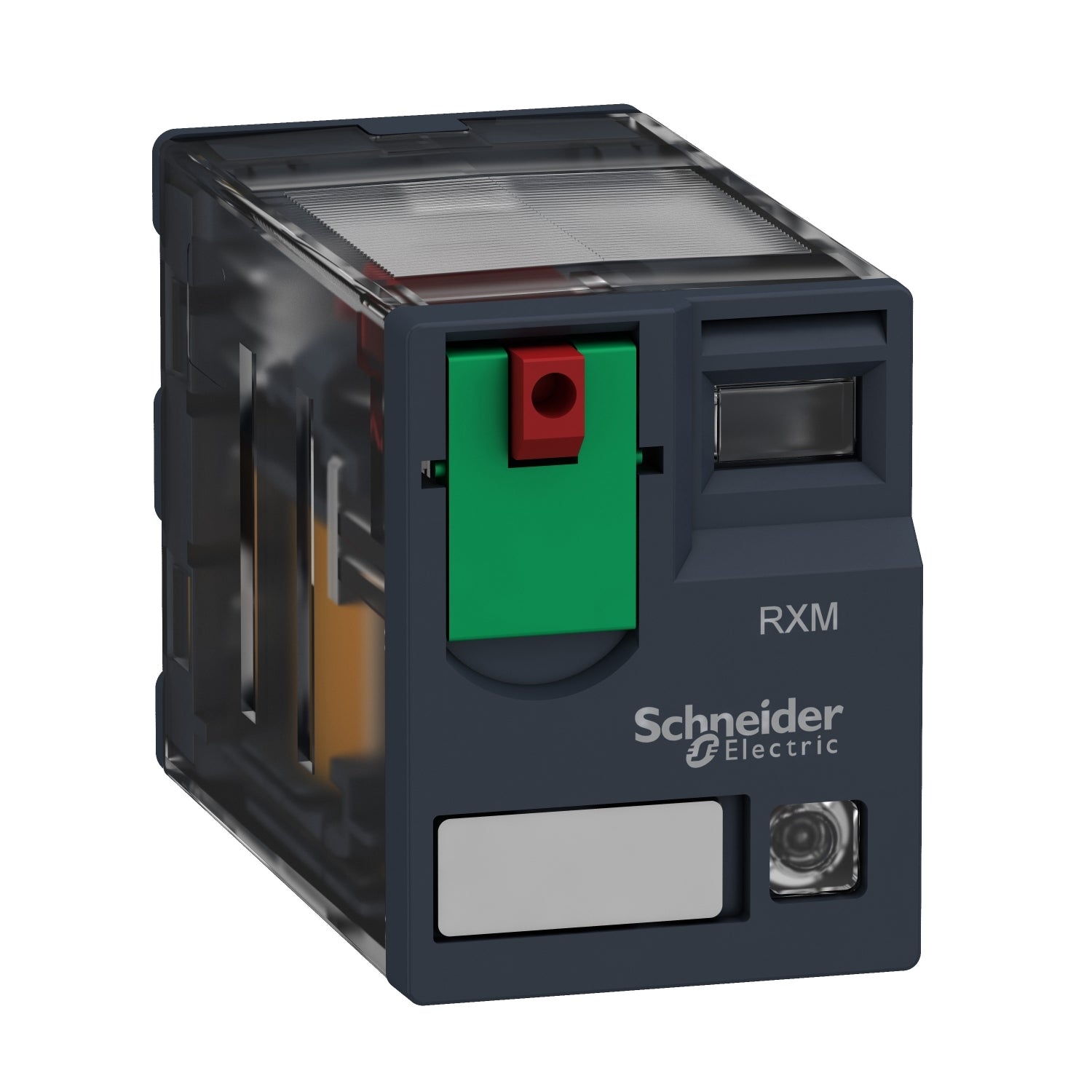

RXM4AB2B7 Schneider Mini Relay+LED Electric

Pack of 10

  • Rated current 6A
  • Status LED
  • Lockable test button
  • Easy installation and maintenance
  • Standards IEC, UL, CSA
  • Dimensions 27 x 21 x 40mm

Product Description

A 24V AC 4PDT relay from the Schneider Electric Zelio RMX series. This miniature plug-in relay has 4x changeover contacts and is ideal for use in industrial machines, building machinery, medical equipment, packaging machines, textile machines, HVAC, etc.

Technical Specification

  • Range of product: Zelio Relay
  • Series name: Miniature
  • Product or component type: Plug-in relay
  • Device short name: RMX
  • Contacts type and composition: 4 C/O
  • [Uc] control circuit voltage: 24 V AC, 50/60 Hz
  • [Ithe] conventional enclosed thermal current: 6 A at -40...55 °C
  • Status LED: With
  • Control type: Lockable test button
  • Utilisation coefficient: 20 %

Complementary

  • Shape of pin: Flat
  • [Ui] rated insulation voltage:
    • 250 V conforming to IEC
    • 300 V conforming to UL
    • 300 V conforming to CSA
  • [Uimp] rated impulse withstand voltage: 2.5 kV for 1.2/50 µs
  • Contacts material: AgNi
  • [Ie] rated operational current:
    • 3 A at 28 V DC (NC) conforming to IEC
    • 3 A at 250 V AC (NC) conforming to IEC
    • 6 A at 28 V DC (NO) conforming to IEC
    • 6 A at 250 V AC (NO) conforming to IEC
    • 6 A at 277 V AC conforming to UL
    • 8 A at 30 V DC conforming to UL
  • Maximum switching voltage: 250 V conforming to IEC
  • Maximum switching capacity: 1500 VA/168 W
  • Minimum switching capacity: 170 mW at 10 mA, 17 V
  • Mechanical durability: 10000000 cycles
  • Electrical durability: 100000 cycles for resistive load
  • Average coil consumption in VA: 1.2 at 60 Hz
  • Average consumption of: 1.2 VA 60 Hz
  • Drop-out voltage threshold: >= 0.15 Uc
  • Operate time: 20 ms
  • Release time: 20 ms
  • Average coil resistance: 180 Ohm at 20 °C +/- 15 %
  • Rated operational voltage limits: 19.2...26.4 V AC
  • Safety reliability data: B10d = 100000
  • Operating rate:
    • <= 18000 cycles/hour no-load
    • <= 1200 cycles/hour under load
